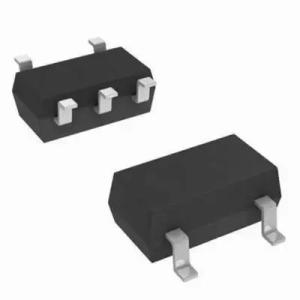

Original Integrated Circuit LMV931MG/NOPB Operational Amplifiers
Description of Integrated Circuit:
LMV931MG/NOPB is a product code for a low-power, low-voltage operational amplifier (op-amp) manufactured by Texas Instruments.
Specification of Integrated Circuit IC Chip:
| Product Attribute | Attribute Value |
| Manufacturer: | Texas Instruments |
| Product Category: | Operational Amplifiers - Op Amps |
| RoHS: | Details |
| Mounting Style: | SMD/SMT |
| Package / Case: | SC-70-5 |
| Number of Channels: | 1 Channel |
| Supply Voltage - Max: | 5.5 V |
| GBP - Gain Bandwidth Product: | 1.5 MHz |
| Output Current per Channel: | 100 mA |
| SR - Slew Rate: | 420 mV/us |
| Vos - Input Offset Voltage: | 4 mV |
| Supply Voltage - Min: | 1.8 V |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 125 C |
| Ib - Input Bias Current: | 35 nA |
| Operating Supply Current: | 116 uA |
| Shutdown: | No Shutdown |
| CMRR - Common Mode Rejection Ratio: | 86 dB |
| en - Input Voltage Noise Density: | 50 nV/sqrt Hz |
| Series: | LMV931-N |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Brand: | Texas Instruments |
| Features: | Small Size |
| Height: | 0.9 mm |
| In - Input Noise Current Density: | 0.07 pA/sqrt Hz |
| Input Type: | Rail-to-Rail |
| Length: | 2 mm |
| Operating Supply Voltage: | 3 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 70 dB |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single |
| Technology: | BiCMOS |
| Vcm - Common Mode Voltage: | 1.8 V to 5.5 V |
| Voltage Gain dB: | 113 dB |
| Width: | 1.25 mm |
| Unit Weight: | 0.000705 oz |
