Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell

Brand Name:Geomax

Certification:CE

Model Number:100-330

Minimum Order Quantity:1000 ㎡

Delivery Time:10-20 days

Payment Terms:T/T, L/C

Contact Now

Add to Cart

Anhui Hechuang New Synthetic Materials Co., Ltd

Verified Supplier

Location: Hefei Anhui China

Address: 1602, Building 11th, Mingfa Center, Hefei City, Anhui Province，China

Supplier`s last login times: within 25 hours

View Contact Details

Product Details Company Profile

Product Details

PRODUCT DESCRIPTION

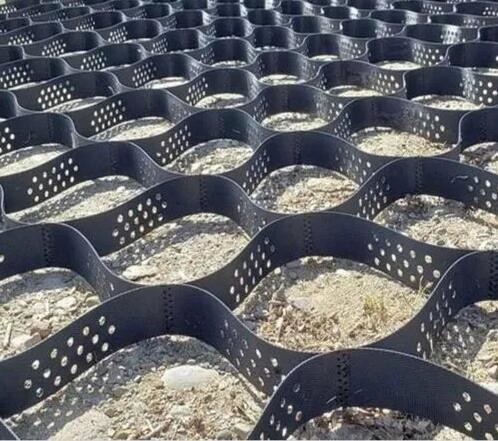

Textured And Perforated HDPE Geocell Ground Enhancement Cellular System Geo Cell

Product Introduction

Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments. Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material. When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

Application

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

HCNS Manufacture

Our Certificates and HDPE Geocell Testing reports

Company Profile

Anhui Hechuang New Synthetic Materials Co., Ltd. is a professional manufacturer and supplier of geosynthetic materials and products that are used for civil engineering and constructions.

With solid strength and strong momentum of development, Hechuang has achieved rapid growth over the past years and has established 3 branches in different locations in China supplying different products as HDPE geocell, geogrids and nonwoven geotextile, geomembrane, etc.

The team not only get excellent performance in domestic market,but also has obtained increasing market share in global countries and regions.

Covers an area of 20,000㎡, Hechuang is embracing opportunity from all over the world, making itself more competitive eversince.

Company has a strong technical force, high quality and stable products, perfect sales network and good faithful, efficient and pragmatic team are recognized by the customers.

HCNS Factory Tour

、

About Our Company

2006 – Anhui Huifeng New Synthetics Material Co., Ltd was established, and our first factory in Anhui Province, China.
2010 – Became leading & the largest geocell manufacture in China.
2011 – We have built up our own brand “GeoMax®“.
2012 – We joined International Geosynthetics Society (IGS) and start to participated in the exhibitions held by IGS almost every year.
2014 – We are invited to become Council unit of Geosynthetics of China.
2016 – Established a new factory named as HCNS (Hechuang) in Anhui Province, China, which has 9 geocell production lines.
2020 – HCNS has become the research base of Nanjing Technology Uinversity.
