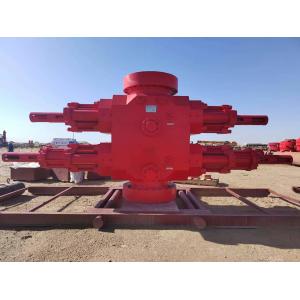

Double Ram BOP forged U type with hydraulic open and close bonnets shear structure with tandem boosters
Brand Name:Rongsheng
Certification:API 16A
Model Number:7 1/16"-26 3/4"
Minimum Order Quantity:1 set
Delivery Time:7 days
Payment Terms:L/C, T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Cangzhou Hebei China
Address:
Xinhua District, Cangzhou City, Hebei Province, China
Supplier`s last login times:
within 25 hours
Product Details
Company Profile
Product Details
Double Ram BOP
Technical Specification of Double Ram BOP with Booster
| Item | Single ram bop (with booster) | Double ram BOP (one chamber with booster) | ||
| Model | 13 5/8”-5000psi | 13 5/8”-5000psi | ||
| Upper connecting type | Studded | Flanged | Studded | Flanged |
| Lower connecting type | Flanged | Flanged | Flanged | Flanged |
| Weight Kg | 5680 | 5888 | 10371 | 10651 |
| Height H mm | 750 | 960 | 1285 | 1495 |
| Gravity G mm | 490 | 515 | 805 | 830 |
| Performance requirement level | PR2 | |||
| Bore | 346.1 mm (13 5/8″) | |||
| Test pressure of hydro-static pressure | 51.8MPa (7,500psi) | |||
| Rated working pressure | 34.5MPa (5,000psi) | |||
| Hydraulic control system strength pressure | 31.1MPa(4,500psi) | |||
| Hydraulic control system rated working pressure | 20.7MPa(3,000psi) | |||
| Recommended hydraulic control system operation pressure | 8.4～10 .5MPa(1,222～1,518psi) | |||
| Cylinder diameter | 342.9mm(13 1/2″) | |||
| Booster diameter | 250mm(9 7/8″) | |||
| Oil volume required by opening one pair of ram | 41L | |||
| Oil volume required by closing one pair of ram | 43L | |||
| Oil volume required by closing one pair of ram(booster) | 63L | |||
| Interface thread of hydraulic control pipe line | NPT 1 | |||
| Specification of side outlet | 3 1/8″-5,000psi | |||
| Temperature Rating | T-20/250(-29～121℃)(Or subjects to the contract) | |||
| Temperature Grades of Metal Material | T20/250(-29~121℃)( Or subjects to the contract) | |||
| Temperature Grades of Metal Material | BAB(extreme low pressure -18℃, continuous high temperature 66℃, extreme high temperature 93℃) (Or Subjects to the contract) | |||
| Closing Ratio | 10.83:1 | |||
| Closing Ratio(with booster) | 17.4:1 | |||
| Ram size for fitting | CSO, 2 3/8″, 2 7/8″, 3 1/2″, 4 1/2″, 5″, 5 1/2″, 7″, 9 5/8″, 9 7/8″, 4″,10 3/4″, 7 5/8″, 6 5/8″, 7 1/2″, 2 7/8″～5″, 3 1/2″～5 1/2″, 41/2″～7″, 2 3/8″～3 1/2″, 3 1/2″～5 7/8″, 3 1/2″dual hole, 2 7/8″dual hole, 2 7/8″X3 1/2″dual hole, ordinary shear ram, Sulfur-resistant Shear Ram Note:It can install same type Cameron Ram (except shear ram) | |||
Note: The design and manufacturing of BOP are subject to API Spec 16A specification. The parts contacting with well fluid within BOP shall be able to resist hydrogen sulfide stress corrosion and all metallic parts contacting with well fluid meet the requirements of NACE MR-01-75/ISO15156.(except shear ram) | ||||
