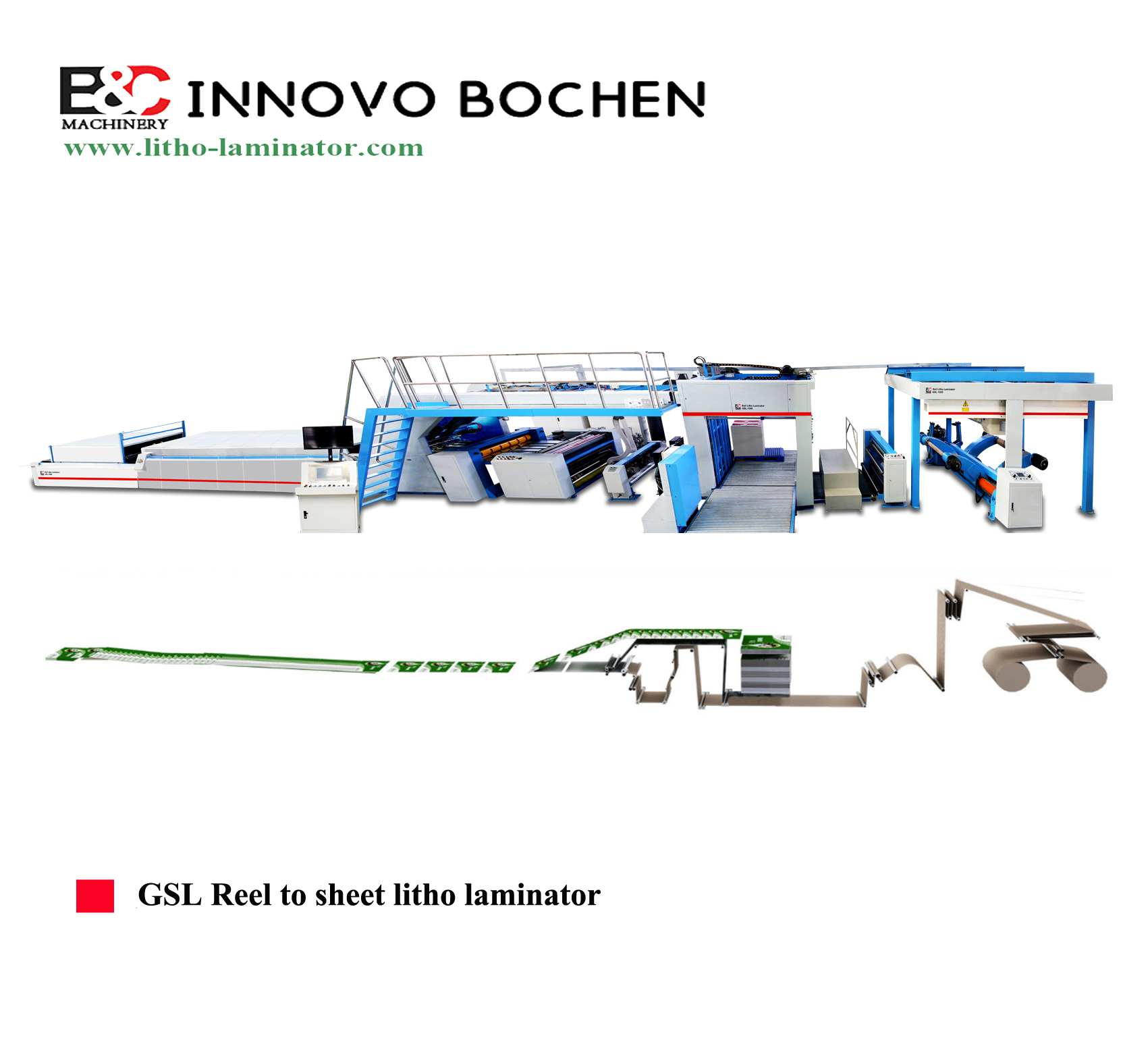

Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line

Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line 150m/min Speed For Corrugated Box Packaging

Technical parameter:

1. Hydraulic mill roll stand:

The maximum paper roll diameter: 1500mm

The maximum paper roll weight: 4500kg

Strong design, full hydraulic driver, ensure stable and reliable work

Use the expansion chip to prevent damage to the paper core

Pneumatic multi -point brake control paper roll tension is constant

Multi -point brakes

2. Automatic splicer machine:

Maximum paper join width: 1450mm/1650mm

Maximum rolling paper diameter: 1500mm

Minimum resistance: 3n/mm

Scope of tension control: 10-100kgf

Electrical control part, main control PLC control, low failure rate, high machine stability

3. Corrugated traction system

Swing roller can automatically adjust the tension of corrugated

The gap between the pressure roller is free to adjust, suitable for different types of corrugated

Driven from the frequency reduction reducer.

Point control the conveying corrugated for convenience to wear paper.

4. Underground or ground conveyor

It is convenient for the paper head to transport when wearing paper

There are belt running partial devices on both sides of the dynamic roller.

5. Bottom sheet aligner system

Adopt a high -precision aligner system to ensure the fit accuracy

6. Corrugated traction glue machine

Use a circulating glue system to reduce glue loss, stabilize glue adhesion effect

Can use white glue or starch glue

Gluing roller: stainless steel material, dynamic balance correction, surface grinding treatment

7. Servo sheeter

Synchronous servo cutting, color marking detection, positioning and tailoring

Imported servo system

Imported spiral blade

8. Automatic flute laminator

The highest line speed 200m/min

High speed laminating, corrugated does not require secondary positioning

Servo positioning to ensure high accuracy

None stop feeding

None stop for pre-stacking

Intelligent design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).

Adopts top sheet aligner system to ensure side accuracy. Feeding mode is overlap type to avoid paper jam.

9. Automatic flip flop stacker

Easily handle 10000-12000 sheets/hour high-speed lamination;

The color surface is free of contact throughout the whole process, and the color surface is truly non-destructive;

The cardboard is stacked in the center to the center of the tray, and the paper stack moves more stably;

The paper collecting part of the small stack can be moved out laterally, which is convenient for laminating, pressing and transporting;

Automatic stacking, automatic flipping, automatic collection, without manual intervention;

Forward and reverse stacking to prevent cardboard warping;

The stacking is neat and the competitiveness of the enterprise is improved;

Reduce labor and reduce labor intensity;

Single-pallet intelligent multi-stack stacking to reduce site occupation;

The large stacks are automatically unstacked, and the empty pallets are automatically placed.
