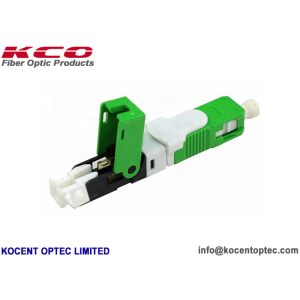

Green Fiber Optic Fast Connector with Insertion Loss 0.2dB Return Loss 55dB and Tensile Strength >30N for FTTH Applications
Brand Name:KCO
Certification:ISO9001, RoHS
Model Number:ESC250D/APC
Minimum Order Quantity:Negotiation
Delivery Time:2~5 days after get payment
Payment Terms:Western Union,T/T,L/C
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
14F, Duocai B Bd, Guanlan Hi-Tech Park, Guanhu, Longhua, Shenzhen, Guangdong, China. P/c : 518110
Supplier`s last login times:
within 48 hours
Product Details
Company Profile
Product Details
ESC250D APC Green IL 0.2dB RL 55dB Interferometer Pass Optical
Fiber Fast Assembly Connector
Technical Data:
P/N: ESC250D APC
Plug type: SC/APC
Ferrule degree: 8°
Ferrule material: ceramic SCA 0.5
Diameter of fiber: 9/125mm
Fiber Mode: Single Mode G652, G657
IL: less 0.5dB (0.2dB type)
RL: more than 55dB
3D: pass 80%
Use for: 2.0mm*3.0mm & 2.0mm*1.6mm FTTH drop cable
Descriptions:
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing.
The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.
Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.
The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
- Double V-groove structure design, fiber optic docking is stable and reliable;
- The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
- Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
- Applicable optical cable: 2.0mm*3.0mm & 2.0mm*1.6mm butterfly cable;
- Tensile strength: > 30N / 2min;
- Simple operation, fast construction speed, high installation success rate, long life cycle and simple and convenient maintenance.
- Product size: 52 * 9 * 8.1mm
Specification
| ITEM | Technical Parameters |
| Applicable for | Drop cable / Indoor cable |
| 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable | |
| Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) |
| 125μm ( 657A & 657B ) | |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0.5dB RL ≤ 5dB |
Feature:
- Factory-installed fiber stub.
- No epoxy and polishing required, No special tools needed when installed.
- Allows up to three re-termination result.
- Easily installed, Quick and easy fiber termination in the field.
- Only 30 seconds needed to learn the process of installation and making.
- Cost effective, Warranty: One year.
- Fast connecting and repeat, No special tools needed when installed.
- Can be made on-site without splicing connectors.
- Eliminates cable excess length and pigtail splice storage.
- Can be intalled and maked repeatedly thus avoiding loss.
Application:
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- FTTH Outlets
- Connection at the desk for LAN environments
- Suitable for FTTx butterfly type cable(both square and circle shape are available)
Product photo:
OEM/ODM Service:
Kocent Optec Limited is one of leader supplier of fiber optic fast
connector in China.
All of our fast connector meet Telecom requirement as Viettel,
VNPT, ...
Logo print is free for quantity more than 10k (pcs). Logo Lettering
is free for quantity more than 100k (pcs)
Contact with our sales team for your OEM and ODM order.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
