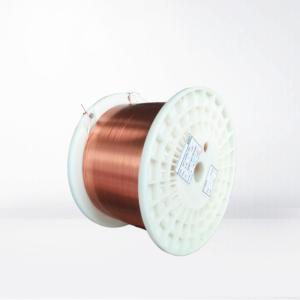

Class 155 - 220 Rectangular Enameled Copper Wire Super Thin Coated Self Bonding Wire

CLASS 155-220 RECTANGULAR ENAMELED COPPER WIRE SUPER THIN COATED SELF BONDING WIRE WITH BETTER COOLING EFFICIENCY

Enamelled Rectangular Copper Wires are used in low and medium voltage electrical machines such as motors, generators and transformers. The cross section of these wires ranges from 3.0 to 75.0 square millimetre with an insulation Class ranging from 155 to 220 degrees Celsius

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

Executive standards: IEC, JIS and NEMA.

FEATURES AND BENEFITS

• High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.

• The coil made from rectangular wire has better cooling efficiency.

• Rectangular wire can be wound with different mode.

• The coil can be better shape, flat and smooth.

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 23 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
