IP67 Waterproof CE approved Connector Adapter 1500V For Solar PV module
Connector Description:
The new 1500v solar connector is a robust DC connector triple-certified to EN50521 1500V (Class A), and JET 1500V specifications, making it available for usage in all major global PV markets. The new 1500v solar connector is an evolution of well-known H4 connector and is globally certified to mate with the H4. new 1500v solar connector uses ours low resistance contact technology giving it the ability to accept wire gauges from 14AWG/2.5mm² to 8 AWG/10mm², and an IP67 rating.
| voltage rating | ≤DC 1500V |
| current rating | ≤30A(3.5-6mm2) |
| pollution degree | CAT III/2 |
| rated power | 4000W |
| waterproof level | IP67 |
| shell material | resistance material,PP0 |
| connecting system | cromp connection |
| contact resistance of plug and connectors | 1MΩ |
| testing voltage | DC 6000V(50Hz,1min) |
| contact material | copper, Ag plated |
| flame class | UL94-VO |
| safety class | II |
| suitable cable | OD4.5-8.5(2.5-6.0mm2) |
| insertion force/withdrawal force | ≤50N/≥50N |
| operation temperature | -40ºC~+125ºC |
| inner material | copper tin plating |
| certificate | CE, RoHS,CCC |
Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent
intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c
to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

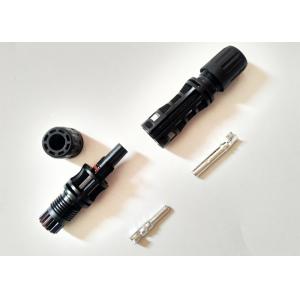

Picture of solar connector
