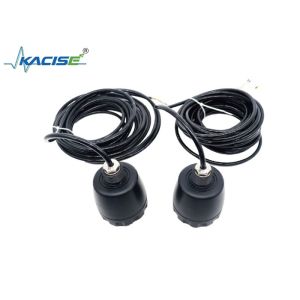

KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine Monitoring
Brand Name:kacise
Certification:ce
Model Number:KWD200
Minimum Order Quantity:1pcs
Delivery Time:5-8 work days
Payment Terms:MoneyGram,Western Union,T/T,D/P,D/A,L/C
Contact Now
Add to Cart
Verified Supplier
Address:
i City, No11, TangYan South road, Yanta District, Xi'an,Shaanxi,China.
Supplier`s last login times:
within 16 hours
Product Details
Company Profile
Product Details
Introduction
This product mainly uses ultrasonic waves to achieve underwater communication.
It is used for underwater unmanned submersible communication, underwater short command transmission, marine sensor network transmission, and marine environment monitoring network transmission.
Product Features
▪ Power supply: battery (12V±10%)
▪ Communication distance: 100m
▪ Pressure resistance: 100m water depth
▪ Working temperature: 0℃～60℃ (no freezing)
▪ Protection grade: IP68
▪ Case material: ABS
Technical Specifications
Communication distance | 50 meters, 100 meters |
Underwater acoustic communication rate | 96bps |
Response rate | 3 seconds |
Send information | 1-12 characters |
Bit error rate | ≤8% (related to the test environment) |
Communication method | RS485, MODBUS protocol |
Voltage resistance | 100 meters water depth |
Usage environment | Water depth greater than 2 meters, away from motors and frequency conversion equipment |
Power supply | Battery (12V ± 10%), receiving power 0.9W/transmitting power 5W |
Protection level | IP68 |
Operating temperature | Working temperature: 0℃+60℃ |
Interface thread size | M33*1.5 |
Storage requirements | Storage environment temperature: -20~+60℃; Storage environment pressure: normal pressure; Storage environment humidity: ≤90%RH (non-condensing); Other requirements: No corrosive liquid, gas or steam in the environment, no vibration. |
Wiring definition | Red: 12V+ Green: 12V- White: 485A Yellow: 485B |
Usage precautions | During the test wiring process, the 485 line cannot touch and short-circuit the power line. If the short-circuit burns out, the product cannot be repaired. |
Application Fields
KWD200 Ultrasonic Underwater Communications Sensor with 50m-100m Range RS485 MODBUS Protocol for Submersible and Marine Monitoring
