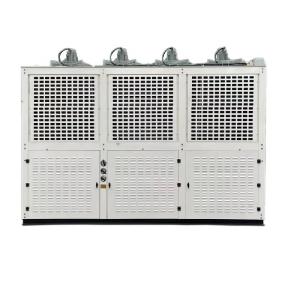

50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
Brand Name:KUB
Certification:CE
Minimum Order Quantity:1
Place of Origin:Shanghai, China
Price:$19,000-20,000
Weight:1500 KG
Contact Now
Add to Cart
Verified Supplier
Location:
Shanghai Shanghai China
Address:
No. 328 on the 4th plant hengyong Road, Jiading District, Shanghai
Supplier`s last login times:
within 29 hours
Product Details
Company Profile
Product Details
KUB-FV-50XXM Explosion-proof Hot Fluorine Defrost Refrigeration Condensing Unit Reliable 6FE-50Y 50HP Compressor Condensing Unit
| Model | Horsepower | Voltage | Heat exchange area | Condenser fan | Suction pipe | Outlet Pipe | Dimensions | ||||
| Quantity | Blade diameter | Air volume | L | W | H | ||||||
| HP | m² | pcs | mm | m³/h | mm | mm | mm | mm | mm | ||
| KUB-FV-15XXM | 15 | 380V-3PH-50HZ | 160 | 2 | 550 | 2*8720 | 35 | 22 | 1700 | 870 | 1550 |
| KUB-FV-20XXM | 20 | 200 | 3 | 500 | 3*6570 | 42 | 22 | 2060 | 870 | 1650 | |
| KUB-FV-25XXM | 25 | 240 | 3 | 550 | 3*8720 | 54 | 22 | 2160 | 900 | 1750 | |
| KUB-FV-30XXM | 30 | 300 | 3 | 600 | 3*10820 | 54 | 28 | 2630 | 1000 | 1810 | |
| KUB-FV-35XXM | 35 | 350 | 3 | 630 | 3*12420 | 54 | 28 | 2750 | 1000 | 1960 | |
| KUB-FV-40XXM | 40 | 400 | 4 | 600 | 4*10820 | 54 | 28 | 3110 | 1000 | 1960 | |
| KUB-FV-50XXM | 50 | 480 | 3 | 630 | 3*12420 | 54 | 35 | 3850 | 1000 | 2000 | |
| Model | Horsepower | Voltage | Heat exchange area | Condenser fan | Suction pipe | Outlet Pipe | Dimensions | ||||
| Quantity | Blade diameter | Air volume | L | W | H | ||||||
| HP | m² | pcs | mm | m³/h | mm | mm | mm | mm | mm | ||
| KUB-FV-15XXL | 15 | 380V-3PH-50HZ | 130 | 2 | 500 | 2*6570 | 42 | 22 | 1620 | 870 | 1450 |
| KUB-FV-20XXL | 20 | 160 | 2 | 550 | 2*8720 | 54 | 22 | 1700 | 870 | 1550 | |
| KUB-FV-25XXL | 25 | 200 | 3 | 500 | 3*6570 | 54 | 22 | 2060 | 870 | 1650 | |
| KUB-FV-30XXL | 30 | 240 | 3 | 550 | 3*8720 | 54 | 22 | 2160 | 900 | 1750 | |
| KUB-FV-40XXL | 40 | 300 | 3 | 600 | 3*10820 | 54 | 28 | 2630 | 1000 | 1810 | |
FAQ
Q1: Are you a manufacturer or trading company?
A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods &payment terms
A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.
Q4: What's your delivery time?Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.
Q5:Can I have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.
The delivery time is according to the way of shipping.
Packaging & Shipping
A. Individuation & Customization
Refrigeration industry, cold storage engineering;
Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period.
If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
