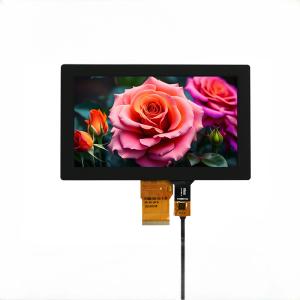

OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000 Nits 7 Inch TFT LCD Display for Control Panels
Brand Name:Fangsheng
Certification:ISO9001:2015,IATF16949,RoHS,Reach,etc
Model Number:FS-TFT
Minimum Order Quantity:500
Delivery Time:3~5 Working Days
Payment Terms:L/C, T/T, D/A, D/P, Western Union, Paypal
Contact Now
Add to Cart
Verified Supplier
Location:
Dongguan Guangdong China
Address:
2 Building, BaiDai Industrial Park,DaoJiao Town,Dongguan, Guangdong China
Supplier`s last login times:
within 39 hours
Product Details
Company Profile
Product Details
OEM ODM 7 Inch TFT LCD Module with LVDS Interface Touchscreen 1000
Nits 7 Inch TFT LCD Display for Control Panels
Features:
High brightness up to 800/1000/1500 nits for sunlight readability
Wide operating temperature from -30°C to +85°C for extreme environments
Ultra-low power consumption for energy-saving performance
High contrast ratio for vivid and sharp images
Fast response time (<20ms) for smooth video playback
High pixel density for crisp text and detailed graphics
Parameter:
| Parameter | Specification |
|---|---|
| Resolution | 800 × 480 pixels |
| Interface | LVDS |
| Driver IC | RM533CO + RM577C1 |
| Viewing Angle | Free Viewing Angle (Free V.A) |
| Touch Support | Capacitive Touch Panel (CTP) |
| Operating Temp. | -30°C to +85°C (Wide Temperature Range) |
| Brightness | 1000 nits (High Brightness) |
| Dimensions | 165.40 × 104.59 × 7.73 mm |
| Active Area | 152.40 × 91.44 mm |
| Key Features | Capacitive Touch Display, Wide Temp TFT, High-Brightness TFT |
