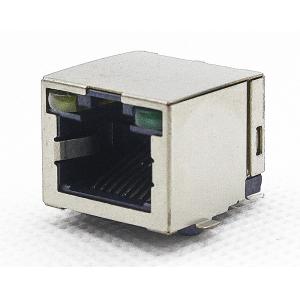

1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115

Tab Up Shielded 1x1 Port 8P8C RJ45 Female Connector With LEDs TM5JS811EX115

Materials:

Housing : LCP,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Up
Connector Length: 15.5 mm
Connector Width: 16.45 mm
Connector Height: 13.40 mm
Connector Peg Height: 1.3 mm
Termimal Solder Pin Length: 1.0 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With L-Yellow/R-green, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer ( Attributes:

RJ45 Female Connector (TM5JS811EX115) Mechnical Drawing:
