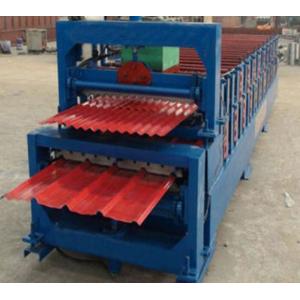

Automatic Corrugated Double Layer Roll Forming Machine With Manual Decoiler
Certification:BV,SGS, CE,ISO9001
Minimum Order Quantity:1 Set
Delivery Time:20 Working days
Payment Terms:L/C, T/T
Place of Origin:Botou,Hebei Province
Supply Ability:30 SETS / MONTH
Contact Now
Add to Cart
Verified Supplier
Location:
Cangzhou Hebei China
Address:
062150,Fuzhuang Development Zone, Botou City, Cangzhou, Hebei Province,China
Supplier`s last login times:
within 45 hours
Product Details
Company Profile
Product Details
840/900 Automatic Double Layers Corrugated Steel Sheets Cold Roll Forming Machine / Cold Forming Equipment
Technical Parameters(depending on specific requirements of users)
Suitable steel plate | Type | Color steel plate |
| Thickness | 0.3-0.8mm | |
| Feeding width | 1000mm | |
| Effective width | Up: 900mm Down: 840mm | |
| Production speed | 8-10m/min | |
| Roller stand | Up layer: 10 rows Down layer: 11 rows | |
| Diameter | 70mm | |
| Main power | 4.0kw | |
| Pump power | 4.0kw | |
| Side panel of machine | 14mm | |
| Roller material | Carbon Steel 45# | |
| Blade material | Cr12, quenched | |
| Control system | PLC control(Mitsubishi/Delta/Others) | |
| Voltage | 380V 50Hz 3phases(changeable as needs) | |
| Main structure of the machine | 300mm H-Beam | |
Component
| No. | Item | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main roll forming machine | set | 1 |
| 3 | PLC control box | set | 1 |
| 4 | Supporter table | set | 1 |
Workflow
Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Transfer Machine--Output Table
Our Services
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 100USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee
FAQ
1.How to play order:
Inquiry---confirm the profile drawings and price----confirm the
PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to
Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao
to Cangzhou Xi(4.5
hours),then we can pick up you.
3: If you want to get more pictures or videos of the machine,please
contact me now!
Application
Automatic Corrugated Double Layer Roll Forming Machine With Manual Decoiler
