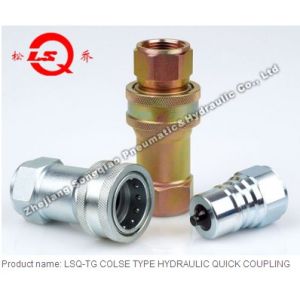

LSQ-TG close type hydraulic quick coupling(steel)
Applications:
LSQ-TG close type hydraulic quick coupling(steel)
The LSQ-TG Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Temperature Range(std seals) -20 degree to +100 degree
Standard seal material is Nitrile
LSQ-TG Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socket and plug are precision machined from solid bar stock.
6. LSQ-TG series conforms to the standard of ISO 7241-A...
7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Applications:
LSQ-TG close type hydraulic quick coupling(steel)
The LSQ-TG Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Temperature Range(std seals) -20 degree to +100 degree
Standard seal material is Nitrile
| Body Size(in) | 3/4 | 1 |
| Rated Pressure(PSI) | 3000 | 3000 |
| Rated Flow(GPM) | 28 | 50 |
| Temperature Range(std seals) | -20ºC to +120ºC | |
| Standard seal material | NBR | |
LSQ-TG Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socket and plug are precision machined from solid bar stock.
6. LSQ-TG series conforms to the standard of ISO 7241-A...
7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
| ISO | PARTNO. | LS | ¢D | HEX1 | A | T |
| 20 | LSQ-TG-06SF | 85 | 49 | S38 | 19 | G3/4 NPT3/4 |
| 25 | LSQ-TG-08SF | 98.5 | 57 | S44.5 | 23 | G1" NPT1" |
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 20 | LSQ-TG-06PF | 57 | 29 | 29 | S35 | 19 | G3/4 NPT3/4 |
| 25 | LSQ-TG-08PF | 65 | 34.3 | 34.3 | S41 | 23 | G1" NPT1" |
| ISO | PARTNO. | LP | D | HEX1 | HEX2 | T |
| 20 | LSQ-TG-06 | 115 | 49 | S38 | S35 | G3/4 NPT3/4 |
| 25 | LSQ-TG-08 | 130.5 | 57 | S44.5 | S41 | G1" NPT1" |
