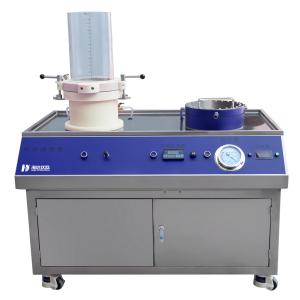

EQUIPMENT DETAILS OF HD-P008 SHEET FORMER
APPLICATION
This instrument is in accordance with ISO5269/2 "Pulp - Preparation of Laboratory Paper for Physical Testing" Part II - Rapid Sheet Forming Method. Used to prepare handsheets for testing physical properties. At the same time, it can be used for wet sheeting of various fibers such as glass fibers, carbon fibers, nanomaterials, etc. This machine has the functions of sheet copying, suction filtration, pressing and drying. The process from fiber to sample shaping is realized on one machine.
STANDARD FEATURES
Water filtering copper mesh surface to water seal overflow edge | 800+5mm |
Water filtering copper mesh pressure hole | (80 .100) optional (nano-fiber using the way of the tray network + filter paper) |
Copper mesh clip material | 304 stainless steel Copper mesh material: paper special phosphorus copper mesh |
Volt weight | 13kg hand-copied paper sheet pressure of 400kpa (volt roller press can increase the smoothness and uniformity of the paper) |
Diameter of hand-copied paper sheet | ∮200mm |
Vacuum pump vacuum degree | -0.092~-0.098MPa |
Vacuum pressing force | ≈0.1MPa |
Drying station: | 1 (2 or more stations can be optioned) |
Drying temperature | ≤140℃ Digital arbitrary setting |
Drying plate release mode | Natural release (with self-absorbing function automatically absorbing after pressing together) |
Drying time (quantitative 10-85g/m2) | 3-6 minutes The drying time will be different for different fiber types with different moisture content of paper samples |
Heating power | 2.5KW |
Paper thickness range | 10-200g/m2 0.05-3mm (different gram weight and thickness range of fiber types differ) |
Seal ring material | silicone |
Water way | bottom water. The upper end of the water |
Drainage method | Pneumatic water release |
