CSK30-P Sprag Freewheel Backstop Clutch Bearing Single way Bearing
Brand Name:Stieber / IKO / KOYO / NSK / FAG / NTN / FSK / OEM
Certification:ISO9001-2000 / CE / ROHS / UL
Model Number:CSK30-P
Minimum Order Quantity:1 pcs
Delivery Time:5-7Days After Details Confirmed
Payment Terms:L/C, T/T, Western Union, MoneyGram
Contact Now
Add to Cart
Verified Supplier
Location:
Wuxi Jiangsu China
Address:
No. 220 Middle Renmin Road, Liangxi District, Wuxi, Jiangsu, China
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details
CSK30-P Sprag Freewheel Backstop Clutch Bearing Single way Bearing
Bearing Specification :
Model Number | CSK30-P |
Part Name | Clutch Release Bearing |
| Dimension(mm) | 30mm X 62mm X 16mm |
| Weight | 0.21kg |
Brand | Stieber / IKO / KOYO / NSK / FAG / NTN / FSK / OEM |
Material | Gcr15 Chrome Steel |
Precision Rating | ABEC-1 to ABEC-9 P0 / P6 / P5 / P4 /P2 |
| Vibration and Noise | Z0V0 / Z1V1 / Z2V2 / Z3V3 |
| Cage | Brass Cage / Steel Cage / Nylon Cage |
| Package | Single Carton Box / Pallet / Wooden case |
| HS Code | 8708932000 |
| Original Country Show | GERMANY |
| Application | Car / Truck / Trailer / Agricultural Vehicle |
Other Models We Can Offer
| type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
CSK..P (BB..-1K ) (KK..P) (OW..P) | d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
CSK..PP (BB..-2K) (KK..PP) (OW..PP) | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..P-2RS (BB..-2GD-1K) (KK..P-2RS) (OW..P-2RS) | 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
| 15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
| 17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
| 20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
| 25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
| 30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
| 35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |||

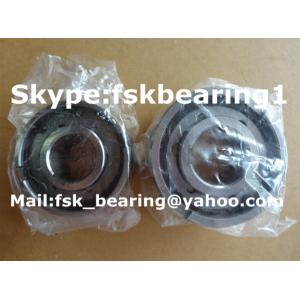

Bearings Detailed Pictures :
CSK30-P Sprag Freewheel Backstop Clutch Bearing Single way Bearing , Get Cheap Price from China Bearing Factory Now !
