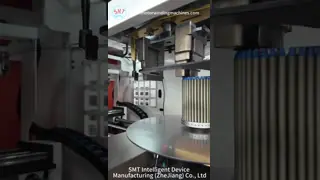

Small Motor Stator Winding Inserting Machine Automatic Coil Inserting Machine

Motor Automatic Coil Inserting Machine for Stator / Coil Inserting Machine SMT - K90

The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
It is controlled by HMI, and machine can diagnose breakdown automatically.
This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
Both copper wire and aluminium wire are applicable.
Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%

Automatic Induction Motor Stator Coil Winding Insertion Machine

Quick Detail:

Description:

This machine is suitable for inserting coil and wedge into stator by servo system; This type of Stator Winding Inserting Machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time; wedge feeding is to be done bt stepping motor,and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface; the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire; different size stator production can be achieved by changing tooling; especially apply to micro induction motors such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.

Techanical data

SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. We,Suzhou Smart Motor Equipment Manufacturing Co., Ltd. has two main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature ,stator production, and the motor assembly line, The second division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

Our Machine Production Process,Our motor stator production line is widely used in the manufacturing of many kinds of motor stators. This stator production line includes several machines, such as paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, and forming machine. Each machine in this stator production line is stand-alone, meanwhile, it can also be connected with conveyor.
