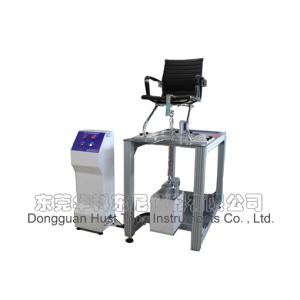

EN 1022:2018 Chair Seat Stability Testing Machine

Brand Name:HUST Tony
Model Number:TNJ-023
Minimum Order Quantity:1 set
Delivery Time:15 working days
Payment Terms:T/T, L/C, Western Union
Place of Origin:Guangdong,China(Mainland)
Contact Now

Add to Cart

Verified Supplier
Location: Dongguan Guangdong China
Address: No. 1,Tech 9th Road,High & New Tech Development Zone,Songshan Lake,DongGuan City,Guangdong Province
Supplier`s last login times: within 26 hours
Product Details Company Profile
Product Details
1)Purpose of equipment

Use : This machine is suitable to test the seats (such as chairs, office chairs) forward stability. The purpose of these tests is to evaluate the front and rear stability of chairs.


Standard :

ANSI/BIFMA X5.1-2017-12.4 Front Stability;

EN 1022,

EN 1729-2


Specification


PowerElectronic
Seat surface loading Max600N
Horizontal force20N
Loading point positionseat surface center position,60mm from front edge
Seat surface loading paddia:200mm, camber surface:R300mm,9 pins
Weights basket liftingmanual control
Dimensions(WxDxH)100x140x105cm
Weight500kg
Air source6kgf/cm2 stable air source
Seat impatct testingoffice chair impact test
