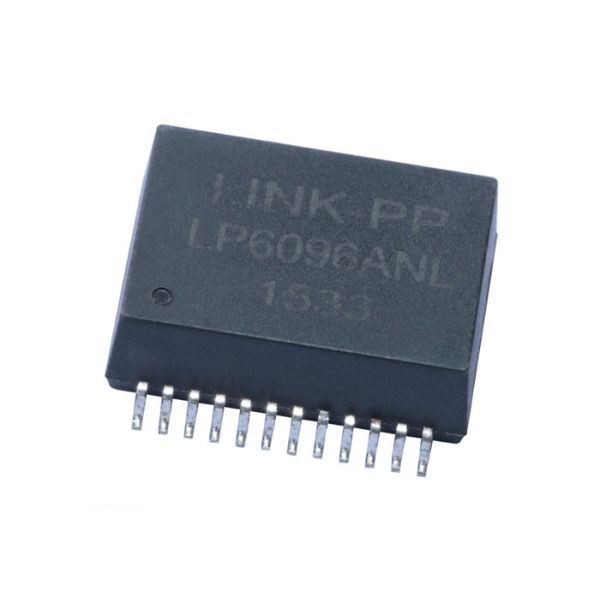

G2462CE Single Port Gigabit Magnetics Transformer Module With POE+ LP6096ANL

G2462CE 720mA POE Gigabit LAN Transformer 100/1000 BASE-T

Electrical Specification @25℃

1. OCL: 300uH @100KHz, 0.1V with 21mA DC Bia @25℃

2. Return Loss (dB Min):
1-40MHz: -16
40.1-100MHz: -10

3. Crosstalk (dB Min):
1MHz: -50
10MHz-100MHz: -55

4. Rejection Ratio Common Mode (dB Min):

30MHz-100MHz: -30

5. Turn Ratio: 1CT:1CT

6. DC Resistance Balance: ± 0.05 OHMS MAX Center Tap Symmetry

7. Hipot:1500Vrms

8. Cww (pF TYP) : 25 @100 KHz, 0.2v

9. Operating Temperature: -40℃～+85℃.
