High Voltage Distribution Type Metal Oxide Arrester For High Operational Reliability
Brand Name:UCHI
Certification:SGS.UL
Model Number:YH10W-12
Minimum Order Quantity:5000PCS
Delivery Time:5-7 days
Payment Terms:T/T,Paypal,Western Union,Money gram
Contact Now
Add to Cart
Verified Supplier
Location:
Dongguan Guangdong China
Address:
Room 810, Unit 2, Building 5, Huixing Commercial Center, Dongsheng Road No.1, Zhongshan Dong, Shilong Town Dongguan, GUANGDONG, 523326 CN
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details

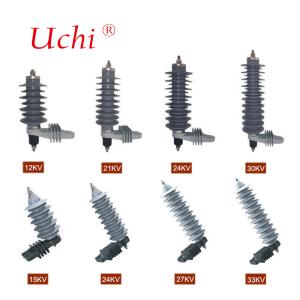

High Voltage Distribution Type Metal Oxide Arrester For High Operational Reliability
Composite Surge Arresters can be applied to a variety of systems including substation equipment, AC-DC converters, railway power system and power distribution units ranging from 0.25kV to 765kV systems. These surge arresters demonstrate excellent protection properties. Metal oxide type surge arresters offer such special features inherent in the gap-less structure, such as a quick response to surge voltage, high energy dissipation capability, safe operation, compactness / lightweight and freedom from pollution.
Product information:
Product name: high voltage distribution type metal oxide arrester
Type: YH10W-12
Material: polymer housing metal oxide
| Type | Rated Voltage | Max Continous Operating Voltage | Residual Voltage | 2ms square wave impulse current withstand | |||
| Steep Current Impulse | Switching Current Impulse | Lightning Current Impulse | 4/10us high current tolerance | ||||
| YH10W-12 | 12kV | 10.2kV | 40kV | 33kV | 36KV | 400A | 100KA |
Polymer surge arrester production process:
1. Zinc oxide varistor with group
2. Core body tied, solidify
3. Degrease, coated with coupling agent
4. Core body preheating
5. Whole vulcanization molding
6. Visual inspection, secondary vulcanization
7. Factory inspection
8. Packing and warehousing
As a leading manufacturer of electrical equipment in China, we are proud to present our Metal Oxide Arrester – a high-performance device designed to protect your electrical systems and appliances from lightning strikes and other power surges.
Our Metal Oxide Arrester is made using the latest manufacturing techniques and materials, ensuring its reliability, durability, and effectiveness. Our product is perfect for use in a wide range of electrical applications, including power generation, telecommunications, transportation, and industrial automation.
Key Features and Benefits:
Our Metal Oxide Arrester comes packed with a host of features and benefits that will make it the go-to choice for merchants looking to protect their electrical equipment and systems from power surges.
1. Superior Protection:
Our Metal Oxide Arrester is designed to provide superior protection to your electrical systems and appliances against lightning strikes, overvoltages, and high-frequency electromagnetic interference.
2. Low Leakage Current:
Our Metal Oxide Arrester has a low leakage current, which ensures that the device does not cause any damage to sensitive electrical equipment.
3. High Surge Current Rating:
Our Metal Oxide Arrester has a high surge current rating, which makes it ideal for use in high current applications.
4. Safe and Reliable:
Our Metal Oxide Arrester is designed to be safe and reliable, with a fast response time and a high energy-absorbing capacity.
5. Easy to Install:
Our Metal oxide Arrester is easy to install, with a simple bolt-on design that allows for quick and efficient installation.
6. Cost-Effective:
Our Metal Oxide Arrester is a cost-effective solution compared to other surge protection devices, which makes it an excellent choice for budget-conscious merchants.
