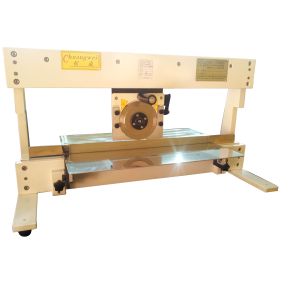

Manual PCB Depaneling Machine LCD program Control no vibration


1.The price is very economical
2.Easy maintanance and operation
3.Low bending stress,no vibration


Specifications:


ModelCWV-1M460
Max. PCB singulation length460mm
PCB singulation Thickness0.6-3.5mm
PCB singulation speed controlby hand
PCB singulation machine size787x400x436mm
PCB singulation machine weight30Kg


Descriptions:


1.Singulation type:upper component side(circular blade),bottom solder side(linear blade).
2.Singulation for small and large PCBs with pre-scored V groove.
3.Singulate pre-scored V groove PCB assembly without stress on either PCBs or component.
4.Singulating speed is controlled by hand and very easy operation.
5.Large stainless steel platform on both side of cutting blade prevents PCBs shaking and the table height and angle could be adjustable.
6.The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCBs.
7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.

Manual V-CUT PCB singulation machine operation:
