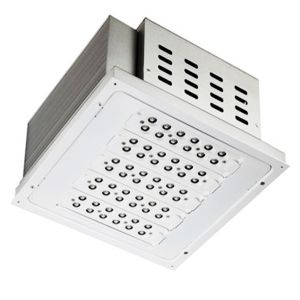

100W IP66 Cool White High luminous LED Canopy Light for petrol station
Brand Name:Hi-semicon
Certification:CE ROHS
Model Number:HZ-TJD100WSI
Minimum Order Quantity:Negotiable
Delivery Time:15-20 Days After the Order Confirmed
Payment Terms:T/T
Contact Now
Add to Cart
Active Member
Location:
Shenzhen Guangdong
Address:
Room A-808，LiWan Building #0101 Qianhai Road,Nanshan Disctrict,Shenzhen,China.
Supplier`s last login times:
within 29 hours
Product Details
Company Profile
Product Details
100W IP66 Cool White High luminous LED Canopy Light for petrol station
Description
LED Canopy Light is an efficient and environmentally friendly LED light source that is designed to replace traditional light sources. The robust design allows the LED canopy light to be used in explosive environments in compliance with IEC 60079-15, “Explosive Atmospheres.” The LED Canopy Light features an optimum reflector design that provides a uniform downward distribution of light. This makes the product a perfect fit for applications such as gas station lighting, airport or train station lighting, mall lighting, high-bay or warehouse lighting, factory or lobby lighting and exhibition hall lighting.
Features
- Fully modularized sets with high brightness LED;
- Thermal conductivity of Aluminum alloy housing;
- Anti corrosion, good thermal dissipation;
- Reduced energy usage,LED lifespan 50, 000 hours;
- Passed the ROHS/CCC/CE/ safety standard;
- No UV radiation, No electromagnetic radiation and thermal radiation.
Advantage : energy Cost Saving
The below energy cost savings is an example for your information | |||
Fixture Type | HZ-TJD100WSI | Mercury Vapour Fittings 250W | Mercury Vapour Fittings 400W |
Present Wattage | 100W | 250W | 400W |
x Annual Operating Hours | 8760hrs | 8760hrs | 8760hrs |
=876,000 watt-hours | =2,190,000watt-hours | =3,504,000 watt-hours | |
÷1,000 per year(kWh) | =876 kWh per year | =2190 kWh per year | =3504kWh |
x kWh Rate of $0.11 | =$96.4per year | =$241 per year | =$385per year |
x 100 Annual Energy Cost Per Space * | =$9,640 | =$24,100 | =$38,500 |
Total Estimated Annual Savings* | =$10600 | =$25000* | |
- Based on 100 lamps operating 8760hrs per year.
- The savings didn’t include further savings of the auto-dim energy savings and maintenance fees of incandescent
- Auto-dim range can be adjustable
- Your actual savings may vary depending on the energy costs in your geographic location.
Specification: S=One mold model P=Recessed model
Product No. | Power | Volts | Power Factor | Colour Temp. | Light Colour | CRI | Approx. Lumen | Sensing | IP Rating | Beam Angle | Rated Avg.Life(Hrs.) |
| HZ-TJD100WSHD | 100W | 100-240V | >0.9 | 3000K± 200K | W.W | >80 | 8000lm | Yes | IP66 | 120° | 35,000hrs |
HZ-TJD100WSI | 100W | 100-240V | >0.9 | 3000K± 200K | W.W | >80 | 8000lm | No | IP66 | 120° | 35,000hrs |
HZ-TJD100WS | 100W | 100-240V | >0.9 | 4000K± 300K | P.W | >80 | 8500lm | No | IP66 | 120° | 35,000hrs |
HZ-TJD100WSH | 100W | 100-240V | >0.9 | 5500K± 500K | P.W | >80 | 8500lm | No | IP66 | 120° | 35,000hrs |
HZ-TJD100WPI | 100W | 100-240V | >0.9 | 3000K± 200K | W.W | >80 | 8000lm | No | IP65 | 120° | 35,000hrs |
HZ-TJD100WP | 100W | 100-240V | >0.9 | 3000K± 200K | P.W | >80 | 8500lm | No | IP65 | 120° | 35,000hrs |
HZ-TJD100WPH | 100W | 100-240V | >0.9 | 4000K± 300K | P.W | >80 | 8500lm | No | IP65 | 120° | 35,000hrs |
Voltage is depends on local electricty standard, Australia :240V Japan :110V USA :110V Europe :230V
Packing information
Product | Product Size | Product Weight | Carton Size | Carton Weight | Quantity Per Carton |
100W | 340*340*150 | 6.2Kg | 405*405*190 | 7.2kg | 1PCS |
Different Installaton Way Show
Recessed-mounted
Side View Top view
Surface-mounted
Side view Top view
Application: Indoor parking lot, factories, storehouses, toll stations, train station, airport, gymnasiums etc.
Project Case
Certificates
