W01-358-7040 Industrial Air Springs Style 19-.75 Airmount Isolator For Check Valve Lapping

Brand Name:Goodyear

Certification:ISO/TS16949, ISO9001

Model Number:1B12-313

Minimum Order Quantity:3 pieces

Delivery Time:3-8 Working Days

Payment Terms:T/T, Western Union,Paypal or Others

Contact Now

Add to Cart

Guangzhou Guomat Air Spring Co., Ltd.

Verified Supplier

Location: Guangzhou Guangdong China

Address: No. 1, Keyuan Road, Baiyun District, Guangzhou,Guangdong,,China

Supplier`s last login times: within 23 hours

View Contact Details

Product Details Company Profile

Product Details

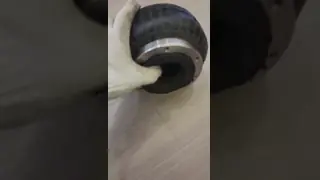

W01-358-7040 Industrial Air Springs Style 19-.75 Airmount Isolator For CHECK VALVE LAPPING

1B7040 OEM Original Manufacturer:

Goodyear Original:1B12-313

Goodyear Original:1B12 313

Goodyear Original:1B12313

Firestone Part Number:W01-358-7040 ,

Firestone Part Number: W01 358 7040 ,

Firestone Part Number:W013587040 ,

Firestone Part Number:W01-358-7040,

Firestone Part Number:W013587040,

Firestone Part Number:WO1-358-7040,

Firestone Part Number:WO13587040

ContiTech Part Number:64596,

ContiTech Part Number:FS330-11474

ContiTech Part Number:FS330 11474

ContiTech Part Number:FS 330-11474

ContiTech Part Number:FS 330-14 CI 1/4 NPT OS

ContiTech Part Number:FS330-14 CI 1/4 NPT OS

ContiTech Part Number:FS330-14CI 1/4 NPT OS

ContiTech Part Number:FS 330-14 CI 1/4 NPT

ContiTech Part Number:FS330-14 CI 1/4 NPT

ContiTech Part Number:FS330-14CI 1/4 NPT

Neway 90557226
Manufacturer: Goodyear
Origin: Mexico
Genuine Goodyear 1B12-313 air spring.
Cross: Firestone W01-358-7040 , ContiTech 64596, FS330-11474 and Neway 90557226
Cross-references cannot guarantee that the part will be suitable for any particular application.

1B12-313 Goodyear single bellows air spring

Goodyear Part number: 1B12-313

Bellows type: single

Ultraman bellows Part number: SP1B22A

Firestone bellows Part number: Not applicable

Goodyear Bellows number: 578-91-3-301

Contitech bellows Part number: FS 330-11

Triangle bellows Part number: 6374

Base plate/neutron type:

Number of top plate holes/studs: 3

Top plate diameter: 9

Top plate C to C diameter: 6.2

Base plate hole bolt Qyt: 2

Base plate diameter: 9

Diameter of base plate C to C: 6.2

Base plate part number:

Bottom plate alignment: parallel

Bumper: No

bracket:

Minimum height: 2.3
Maximum height: 7.2

Bellows industrial air spring, single-turn, 330 cm2 effective area, 14 cm maximum stroke, crimped bead plate, internal thread mounting thread, 1/4 NPT, offset

Compressed height	Maximum stroke
2.01"	5.08"
Maximum deployment height	Inlet type
7.09"	empire
The maximum diameter	Air inlet
13.5"	1/4"
Maximum inflation pressure	series
120 psi	C
Bellows type	lowest temperature
Single twist	-76°F
weight	Maximum temperature
9.48 pounds.	158 degrees F

1B7040 Isolator For CHECK VALVE LAPPING:

Application of air spring in the check valve of grinder ／ CHECK VALVE LAPPING:

The check valve of the grinder is characterized by a flange, an aluminum tube, a rubber air spring and a screw fixing plate; an aluminum tube is welded on the flange; a number of grooves are provided on the outside of the aluminum tube; the aluminum A rubber sleeve is installed outside the tube; a number of screw through holes are provided on the rubber sleeve; a screw fixing plate is installed on the rubber sleeve; a number of through holes are provided on the screw fixing plate; the screw fixing plate passes through The screw is fixedly connected with the rubber sleeve and the aluminum tube. The utility model has a simple structure, convenient use, convenient installation, convenient replacement of parts, and increased service life.
