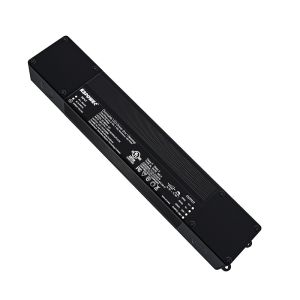

5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply
Brand Name:KSPOWER
Certification:UL FCC CE ROHS SAA CLASS P etc.
Model Number:KS-60AW-xxP
Minimum Order Quantity:10 pieces
Delivery Time:20-25 days
Payment Terms:T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
8,9A Floor, Building 2, Fengxing Lane No.1, Fenghuang Community, Fuyong St., Baoan Dist., Shenzhen, Guangdong, China
Supplier`s last login times:
within 30 hours
Product Details
Company Profile
Product Details
Products Description
The KSPOWER - HP series 5 in 1 dimmable led driver 40W-320W is one
constant voltage solution, accept universal AC input voltage range
from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt
optional with greater operating efficiency and PFC function. The HP
series CV Class 2 dimming LED Driver is dimmable down to 0% with
0-10V / MLV / ELV Lutron dimmers. Featuring 10K frequency PWM
output and IP67 waterproof environment protection rated for indoor
or outdoor use, the 0-10V/1-10V and triac dimmable led drivers
provide 5 years after sale service and outstanding led dimming
performance.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt Optional
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note:Any custom label/package/case is acceptable, provide OEM and ODM service
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt Optional
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note:Any custom label/package/case is acceptable, provide OEM and ODM service
| Dimming Type | Series | Power | Model (xx=output voltage) | Output voltage& Output current | Input voltage | Size | |||
| 12V | 24V | 36V | 48V | ||||||
| 5 in 1 dimming | HPJ | 40W | KS-40AW-xxP | 3.3A | 1.67A | 1.11A | 0.83A | 100~277V 50/60Hz | 297*58*36mm |
| 60W | KS-60AW-xxP | 5A | 2.5A | 1.67A | 1.25A | ||||
| 80W | KS-80AW-xxP | 6.67A | 3.33A | 2.22A | 1.67A | ||||
| 96W | KS-96AW-24P | / | 4A | / | / | 322*58*36mm | |||
| 100W | KS-100AW-xxP | 8.33A | 4.16A | 2.78A | 2.08A | ||||
| 120W | KS-120AW-xxP | 10A | 5A | 3.33A | 2.5A | ||||
| 150W | KS-150AW-xxP | 12.5A | 6.25A | 4.16A | 3.13A | ||||
| 180W | KS-180AW-12P | 15A | / | / | / | 343*68*41mm | |||
| 200W | KS-200AW-xxP | 16.66A | 8.33A | 5.55A | 4.16A | ||||
| 240W | KS-240AW-xxP | 20A | 10A | 6.66A | 5A | 367*68*41mm | |||
| 300W | KS-300AW-24P | / | 12.5A | / | / | ||||
| 320W | KS-320AW-xxP | / | 13.33A | 8.88A | 6.66A | ||||
5-Year Warranty 60W IP67 LED Driver with ≥90% Efficiency and Triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance Dimmable Power Supply
