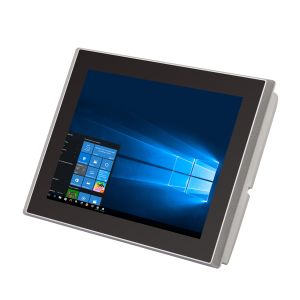

Ip65 Panel PC Core I5 I7 12" Touch Screen Dual Gigabit Ethernet Lan 4 USB 3.0 VESA Mount Embedded Industrial Panel PC
Core Components
- Processor options: Range from budget-friendly Intel Celeron (J4125/J6412/N100) to high-performance Intel Core i5/i7 (8th-12th generation)
- Motherboard: Cordless design optimized for industrial reliability
Build Quality & Durability
- Construction: Aluminum alloy shell with seamless design for strength and heat management
- Waterproofing: IP65-rated front panel (dust-tight and water jet resistant), rubber gasket on rear
- Cooling: Passive cooling via integrated heat sink - completely fanless operation
- Power: Wide 9V-36V input range for compatibility with various industrial power systems
Display Features
- Screen: Industrial-grade LCD with wide viewing angles, high brightness (high nits for outdoor/bright environments), and accurate color reproduction
- Touch: Full flat capacitive touchscreen design
- Dual Display: HDMI output for secondary monitor, supports both mirrored and extended desktop modes
Operational Capability
- Reliability: Designed for 24/7 continuous operation
- Efficiency: Low power consumption despite fanless design
Specification
| Model:SC800M-SC121 | |
| PC | |
| CPU Optional | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® N100, 4 Cores, 4 Threads, Base 0.8 GHz, Turbo 3.3 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8260U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8365U 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.1 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8565U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.6 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8569U 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10310U 4 Cores, 8 Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10510U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-1135G7/i5-1155G7, 4 Cores, 8 Threads, Base 2.4 GHz, Turbo 4.2 GHz, 8 MB Cache, Fanless |
| CPU Optional | Intel® Core i7-1165G7/i7-1195G7, 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 12 MB Cache, Fanless |
| CPU Optional | Intel® Core i5-1235U/1245U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz, Fanless |
| CPU Optional | Intel® Core i7-1255U/1265U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.8 GHz, Fanless |
| Memory | J4125: 1x DDR4 SODIMM, Max 8G DDR4 J6412: 1x DDR4 SODIMM, Max 16G DDR4 N100: 1x DDR5 SODIMM, Max 16G DDR5 8/10/11gen: 2x DDR4 SODIMM, Max 64G DDR4 12gen: 2x DDR5 SODIMM, Max 64G DDR4 |
| Storage | 1 x M.2 2242/2260/2280 SATA, 1 x SATA(2.5'' SATA ) , 1 x M.2 2280 NVME |
| Hard Drive Capacity | 128GB, 256GB, 512GB, 1TB, 2TB, 4TB, SSD, 500GB, 1TB, 2TB, 4TB HDD Optional |
| Network | 2x 2.5 GbE RJ45 Intel i225V (4 x 2.5GbE RJ45 Intel i225V Optional) |
| Wireless Network | WIFI/Bluetooth, 4G/5G, GPS Optional |
| I/O Interface | 4 x USB2.0 , 2 x USB3.0 (J4125/J6412/N100) 2 x USB2.0 , 4 x USB3.0 (Core i5/i7) |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 1x HDMI/Audio Line-out/ Power Button | |
| 1x AT/ATX switch | |
| 1 x Extended IO: 4x RS232(4x3 wire COM3&COM4&COM5&COM6), GPIOx10, 1x Remote Switch | |
| 2x 8Ω 1W Amplifier out optional | |
| Expansion slot | M.2 3042/3052 3G/4G/5G Module, onboard SIM Card Slot |
| M.2 2230 WiFi Bluetooth | |
| Watchdog timer | 1 to 65535 seconds programmable setting |
| Operation System | Support Windows® 10/11, WES 10, LINUX, etc. |
| Support | TPM 2.0 |
| Support | PXE Boot |
| Support | UUID |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 500 (cd/m²) |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 Wire Resistive Touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 9-36V DC Wide Voltage with 4PIN Aviation Connector |
| Power consumption | ≤24W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey |
| VESA mounting | 75x75/100x100mm M4 |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C |
| Relative humidity | 10%~90% @ 30° C, Non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 5kg |
| Product Dimension | 318.8x245.0x65.5 mm |
| Packing size | 43x38x18cm |
| Accessories | Power adapter, Power cord, Embedded screws |
| Accessories optional | WIFI module, 3G/4G/5G module, VESA bracket |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 2 years warranty |
| Certificate | CE, FCC, RoHS |
Advantages
1. Working temperature range is -20°C to 70°C.
2. Industrial LCD panel is wide viewing angle, high nits and true
color.
3. High performance motherboard, 7x24 continuous operation.
4. Symmetric design can be utillized in portrait mode with style.
5. Heat sink in back case great for heat dissipation and beatiful appearance.
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
This type of panel PC is typically used in industrial automation, manufacturing, logistics, transportation, or other demanding environments requiring reliable, continuous operation with protection against dust and water ingress.
